General Electric U13C (Phase 1)

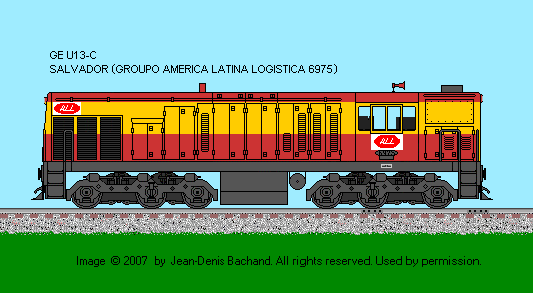

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 28 August 2007 Drawing by: Jean-Denis Bachand
-
Engine Builder: Cooper Bessemer Engine: 4-cycle Model FVBL-8T
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1050 / 400
Main Generator: GE - GT601 Horsepower: 1300
Gear Ratio: 93:18 Speed: 64 mph
6-Wheel Configuration: C-C
Traction Motor Blowers: GE NC330 Number: 2
Weight: 115,000 lbs Traction Motors: GE 761 (Four)
Tractive Effort (starting) 38,400 lbs @ 30% Tractive Effort (continuous): 27,000 lbs @ 8 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE GY27 Alternator: GMG-146
Air Brake: Westinghouse Model: 26LA
Air Compressor: Westinghouse Model: 2CDC
Quantity Built: Unknown Dates: 1960 to 1963 (phase 1) and 1963 to 1971 (Phase 2)
- -
Exterior Dimensions U13C (Phase 1)
Total Length 38'-04" (46'-04.5")
Wheel Diameter 36"
Truck Wheel Base 10'-05"
Height to Hood Top 12'-00"
Height to Top Cab 11'-10"
Cab Width 9'-00"
Hood Width 8'-10"
Top of Walkway 8'-06"
Walkway Width 4'-00"
Center Bolster 21'-10"
Distance between Truck Centers 28'-08"
Leading Edge Front Truck to Front Pilot 0'-06"
Trailing Edge Rear Truck to Rear Pilot 0'-06"
Leading Edge Front Truck to Trailing Edge Rear Truck 39'-11"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 400 Lubricating Oil: 140
Engine Cooling Water: 120 Sand Capacity: 12 cu. ft.
